在全球能源转型的关键阶段，新能源系统的高效、可靠与可持续运行，已成为推动行业进步的核心驱动力。泰铂科技凭借过硬技术创新能力精准响应能源变革中的每一个挑战与机遇。
At this critical stage of global energy transition, the efficient, reliable, and sustainable operation of new energy systems drives industry progress. Leveraging its innovative strength, Taybo is ready to meet every challenge and opportunity in the evolving energy landscape.

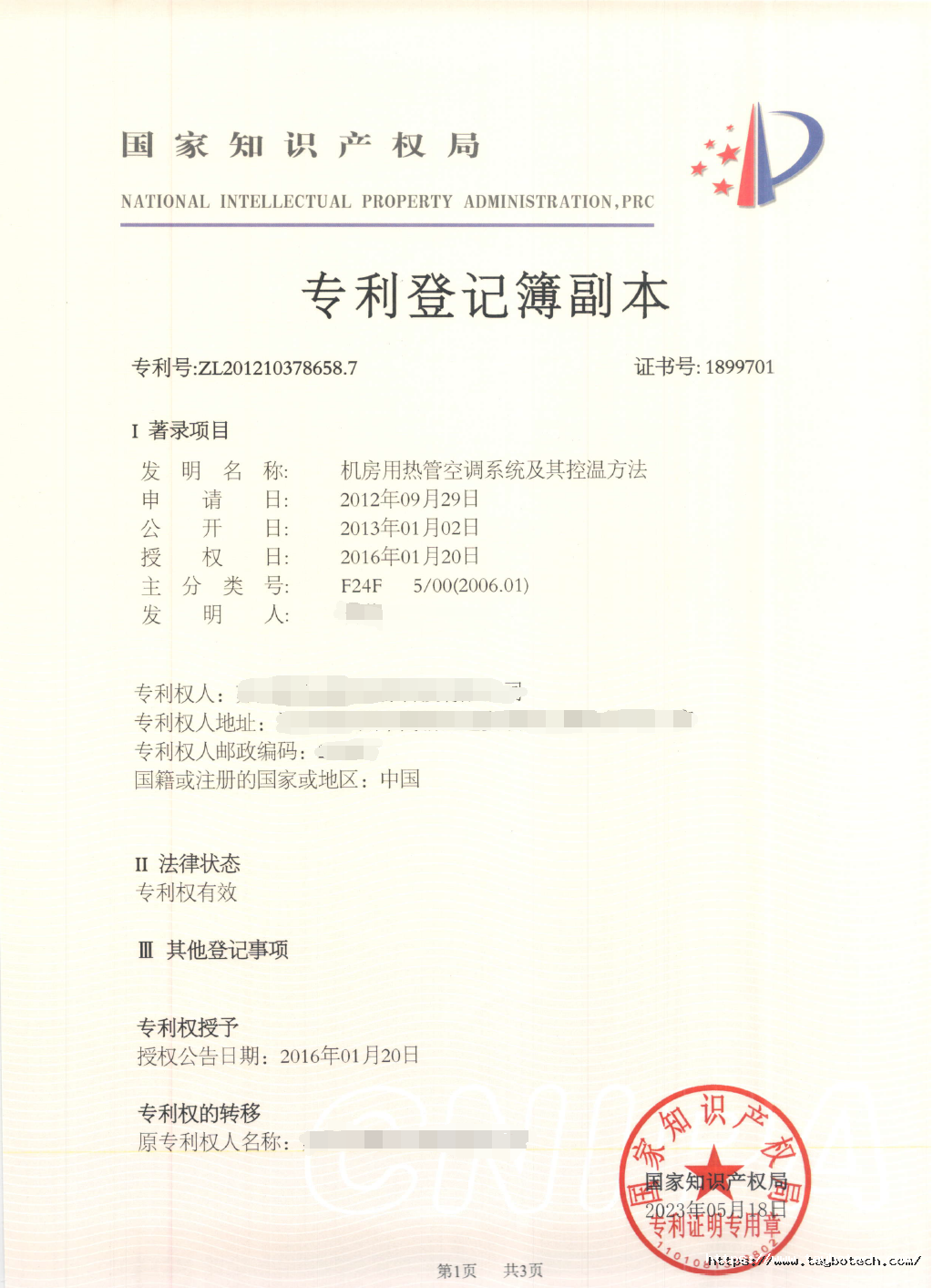

2026年1月，泰铂科技正式推出第三代 “重力热管自然冷却 GHP Free-cooling”液冷机组。该产品依托公司自有重力热管系统发明专利（专利号：ZL.201210378658.7，发明名称：机房用热管空调系统及其控温方法），创新性地将重力热管技术与传统液冷系统深度融合，为储能场站、数据中心等场景提供高效低碳的温控解决方案。
In January 2026, Taybo officially launched the third-generation ' GHP Free-cooling' liquid cooling unit. This product, based on the company's proprietary gravity heat pipe system invention patent (Patent No.: ZL.201210378658.7, Invention Name: Heat Pipe Air Conditioning System for Computer Rooms and Its Temperature Control Method), innovatively integrates gravity heat pipe technology with traditional liquid cooling systems, providing efficient and low-carbon temperature control solutions for scenarios such as energy storage and data
一、工作原理 working Principle
重力热管（又称热虹吸管）是一种无需额外动力的高效传热装置，自然冷却系统与主系统共享板换、风机，仅需新增一个冷凝器即可实现双系统协同，而且热管回路与压缩机制冷回路完全独立、互不干扰，只要系统回液温度高于环境温度，热管系统即可自动启动，获取自然冷量。
A gravity heat pipe (thermosiphon) is a highly efficient heat transfer device that requires no additional power. The natural cooling system shares the plate heat exchanger and fans with the main system, requiring only the addition of a condenser to achieve dual-system synergy. Moreover, the heat pipe circuit and the compressor refrigeration circuit are completely independent and do not interfere with each other. As long as the system's return liquid temperature is higher than the ambient temperature, the heat pipe system can automatically start up to capture natural cooling capacity.
二、产品优势 Product Advantages
一、节能增效
1.Ultimate Energy Efficiency
热管系统在低温环境下优先运行，显著提升综合能效，解决传统液冷设备的低温启动难题。以法兰克福地区应用为例，该机组的重力热管每年可稳定运行5160小时，每台机组的年节能量达46318kWh，节能率高达66%。（根据全球多气候区实测数据，从赫尔辛基（节能率55%）到巴黎（节能率33%），该机组在不同气候条件下均能实现显著节能，10年累计节电量最高可达463180kWh（法兰克福）。
The heat pipe system operates preferentially in low-temperature environments, significantly improving comprehensive energy efficiency and addressing the low-temperature startup challenges of traditional liquid cooling equipment. Taking the Frankfurt region as an example, the unit's gravity heat pipe can stably operate for 5,160 hours annually, with each unit achieving annual energy savings of 46,318 kWh and an energy-saving rate of up to 66%, directly saving $11,441 in electricity costs per year. (Based on actual measured data from multiple global climate zones, from Helsinki (55% energy-saving rate) to Paris (33% energy-saving rate), this unit can achieve significant energy savings under various climatic conditions. The cumulative energy savings over 10 years can reach up to 463,180 kWh in Frankfurt.)
二、运维成本低
2.Cost-effective maintenance
机组内置半封闭式排气储液水箱，实现1分钟快速加液排气，避免冷冻液酸化问题，延长冷冻液使用寿命，减少更换频次与运维成本。
The unit features a built-in semi-enclosed exhaust and liquid storage tank, enabling rapid liquid filling and exhaust within 1 minute. This avoids coolant acidification issues, extends the coolant's service life, and reduces replacement frequency and maintenance costs.
三、环境适配
3.Environmental Adaptability
采用离心风机吹风设计，风机电机工作温度更低，设备寿命长，抗脏堵能力强，轴冻结风险低。
Utilizing a centrifugal fan blowing design, the fan operates at lower temperatures, has a longer lifespan, offers strong resistance to clogging, and has a low risk of shaft freezing.
四、空间优化
4.Space Optimization
优化出风方向设计，降低场站热岛效应，缩小集装箱安装间距，提升储能站空间利用率。
五、全球通用
5.Global Compatibility
工作电压覆盖342V–528V宽范围，兼容 50/60Hz 供电频率，采用欧 /美/澳/国内统型设计，全球范围内即装即用。
Operating voltage covers a wide range of 342V–528V, compatible with 50/60Hz power supply frequencies. Adopting a unified design for Europe, America, Australia, and China, it is ready for immediate installation and use worldwide.
六、静音运行
6.Silent Operation
离心风机灵活搭配消音罩，运行噪音低于传统液冷设备，适配噪音控制要求较高的城市储能站、数据中心等场景。
The centrifugal fan can be paired with a soundproof cover, resulting in operating noise levels lower than those of traditional liquid cooling equipment. This makes it suitable for urban energy storage stations, data centers, and other scenarios with high noise control requirements.
高效能、高可靠、少维护、长寿命
High efficiency, High reliability, Low maintenance, Long lifespan
泰铂科技第三代重力热管自然冷却机组，以全生命周期的低碳运维，为客户提供稳定高效的绿色能源解决方案。
Taybo's third-generation GHP free-cooling unit delivers a stable and efficient green energy solution to customers through low-carbon operation and maintenance across its entire lifecycle.
