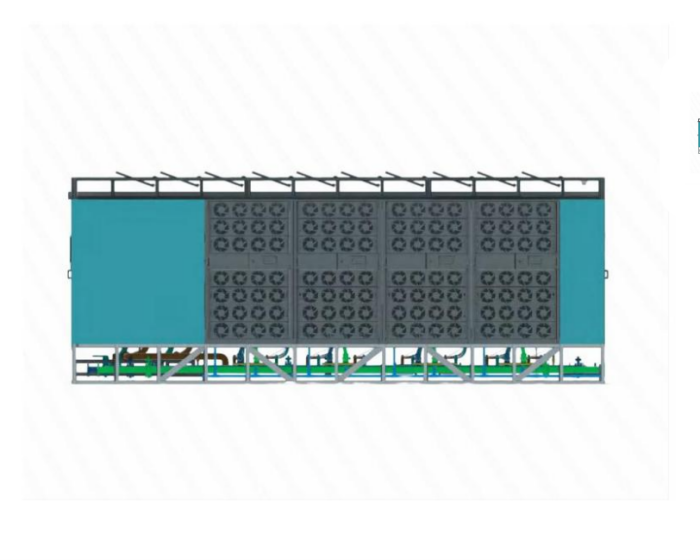

About Fabricated Data Center Fanwall AI All-in-room
The pre-integrated indoor computing power center infrastructure solution integrates functions such as power supply and distribution, chilled water air walls and pipelines, CDU and secondary pipelines, manifolds, cabinets, and environmental monitoring. It supports AI equipment by providing a stable, reliable, and energy-efficient infrastructure environment.
| FDC-FW-AI-AIR | |
| Altitude range | ≤1000 meters |
| Ambient temperature | 18~35℃ |
| Ambient humidity | 5%-95%RH |
| Module external dimensions | Total module dimensions: 7400mm L * 3100mm W * 2550mm H, transportable in sections, standard shipping container transport |
| Closed aisle | Closed hot aisle, width 1500mm, flip skylight |
| Aisle door | Double doors on both sides of the aisle |
| Raised floor | Height 550mm |
| Cabinet power density | 40KW/cabinet, expandable to 80KW/cabinet |
| Cabinet dimensions | Standard 19" cabinet (600mm x 1200mm x 2000mm), 42U |
| Cabinet usable height (U) | 336 |
| Number of cabinets | 8 |
| Cabinet front and rear doors | Front door single-opening mesh, no rear door |
| Power distribution cabinet | 2-way UPS independent power supply for IT cabinets, air wall ATS switchover power supply, 380V/415V/50Hz |
| Power distribution capacity | UPS 2*800A |
| Load air/liquid ratio | Air/liquid ratio: 10%/90%~30%/70% |
| PDU | A/B dual circuit, 40A/3P |
| Modular UPS | None |
| Backup time | None |
| Cooling method | Liquid cooling (cold plate) + air cooling (chilled water air wall) |
